Rail Boot

Over 1 Million Miles of Rail Boot Installed



Iron Horse Engineering Co. developed rail boot in 1987 to provide an electrical isolation barrier between the steel rail and surrounding roadway for embedded track. This resilient barrier absorbs rail vibration, minimizing the cracking of the surrounding pavement.

The Iron Horse rail boot has been installed on most every modern light rail and streetcar system in the United States as well as in many industrial, freight and maintenance facility track applications.

Iron Horse Engineering is proud to be the inventors and leading manufacturer of Ironhorse Railboot for embedded track with over 1 million miles installed including light rail, streetcar, grade crossings, maintenance facilities, industrial and freight track. For over 29 years, Iron Horse rail boot has been installed in various track environments with no failures and very low maintenance.

At Iron Horse Engineering we hold our quality standards to the highest level of customer satisfaction in both our production of embedded track materials and our decades of rail products expertise. Continual innovations keep us ahead in the industry and continue to set us apart.

​Rail Sizes:

  • 136RE

  • 132/133RE

  • 115RE

  • 115 Restraining Rail

  • 100 ARA & ARAB

  • 85 ASCE

  • Girder Rail- Ri51/52/53 & Ri59/60

  • 62Ri (NP4aMOD)

  • 112 Block Rail

  • Custom Sizes

  • Snap on Flangeway Former

Accesories:

  • Zip Ties

  • Joining Cuff

  • Cuff Tape

  • Butyl Sealant

  • Flangeway Clips

  • Flangeway Connector Rods

  • Rail Head Tape (9" or 12")

Benefits:

  • Control of stray current

  • Reduction of noise and vibration

  • Profiles for any rail section

  • Quick, foolproof installation

  • Improved life of track & surrounding pavement

Installation & Application Image Gallery

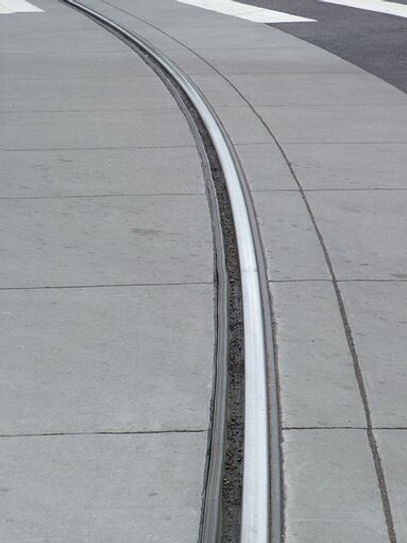

pdx-boot LRT.jpeg
boot image6.jpeg
boot pic - good2.jpeg

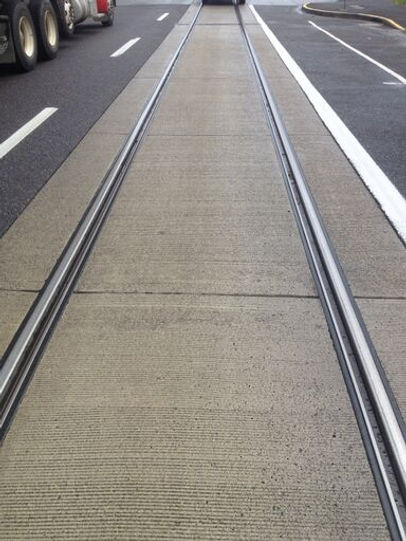

boot pic embedded.jpeg
boot on rail pic.jpeg
LRT pic.jpeg
embedded track.jpeg
Rail Boot 7.JPG
Rail Boot 10.JPG
embedded track5.jpeg
boot pic12.jpeg

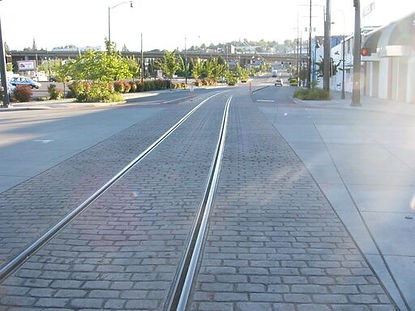

pdx downtown4.jpeg
boot with leveling beam. good pic.jpeg
Rail Boot.jpg
embedded track project1.jpeg
special track pic 1.jpg
hiawatha 014 (1).jpg
boot image4.jpeg
Rail Boot 3.JPG
Tacoma boot1.jpeg
Rail Boot 1.JPG
Rail Boot 5.JPG
Rail Boot 4.JPG
Rail Boot 6.JPG
Rail Boot 9.JPG

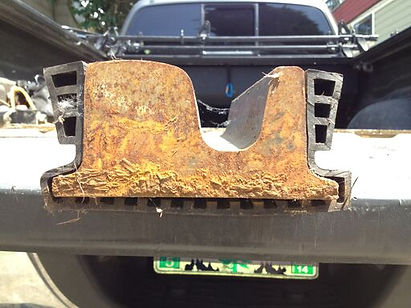

boot on rail.jpeg
snap on flang.jpeg
PDX LRT.jpeg
Mt Washington tunnel turn.jpeg
boot pic - good1.jpeg

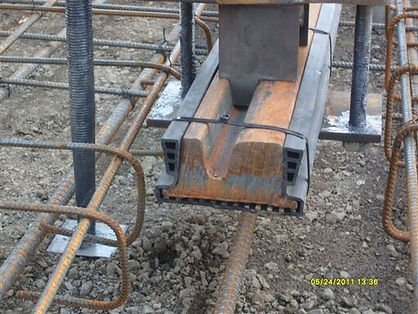

boot on rail with zip ties.jpeg

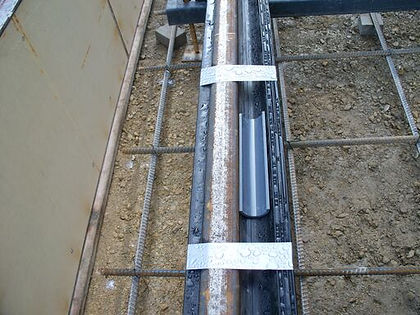

boot with pvc.jpeg
pdx downtown4.jpeg
